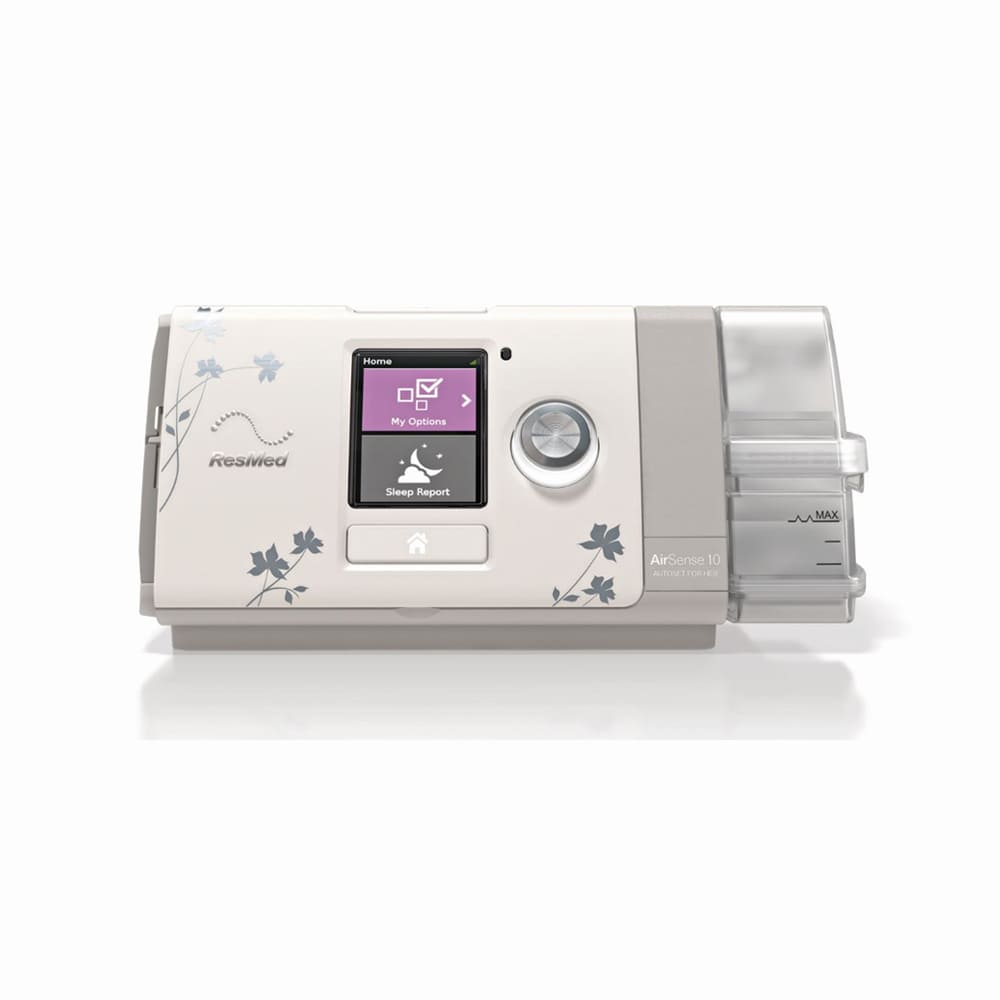

CPAP ResMed

AirSenseTM 10 AutoSetTM

The AirSense 10 AutoSet is a premium auto-adjusting pressure therapy device that automatically adjusts pressure levels to fit your changing needs and to ensure you’re receiving the lowest pressure necessary. The AirSense 10 AutoSet is also set to deliver therapy at the most comfortable temperature and humidity levels when used with ResMed’s new HumidAir™ heated humidifier and ClimateLineAir™ heated tube.

Engineered to be intuitive and easy-to-use, you can simply plug in the AirSense 10 AutoSet device and press Start

TECHNICAL SPECIFICATIONS

90W power supply unit

AC input range: 100–240V, 50–60Hz 1.0–1.5A, Class II
115V, 400Hz 1.5A, Class II (nominal for aircraft use)
DC output: 24V 3.75A
Typical power consumption: 53W (57VA)
Peak power consumption: 104W (108VA)

Sensors

Pressure sensor:
Internally located at device outlet, analog gauge pressure type, -5 to +45 cm H2O
Flow sensor:
Internally located at device inlet, digital mass flow type, -70 to +180 L/min

Maximum single fault steady pressure

Device will shut down in the presence of a single fault if the steady state pressure exceeds:
30 cm H2O for more than 6 sec or 40 cm H2O for more than 1 sec.

Sound

Pressure level measured according to ISO 17510-1:2007 (CPAP mode):
SlimLine:
26.6 dBA with uncertainty of 2 dBA
Standard:

Physical - device and water tub
Dimensions (H x W x D):
4.57" x 10.04" x 5.91" (116 mm x 255 mm x 150 mm)
Air outlet (complies with ISO 5356-1:2004): 22 mm
Weight (device and standard water tub):
44 oz (1248 g)

Temperature

Maximum heater plate:
154°F (68°C)
Cut-out:
165°F (74°C)
Maximum gas temperature:
 106°F ( 41°C)

Air filter

Standard:
Material: Polyester non woven fiber
Average arrestance: >75% for ~7 micron dust
Hypoallergenic:
Material: Acrylic and polypropylene fibers in a polypropylene carrier Efficiency: >98% for ~7-8 micron dust; >80% for ~0.5 micron dust

Aircraft use

ResMed confirms that device meets the Federal Aviation Administration (FAA) requirements (RTCA/DO-160, section 21, category M) for all phases of air travel.

Wireless module

Technology used:
CDMA (USA and Canada only) 2G GSM (all regions except USA and Canada)

FCC ID: 2ACHL-AIR10CD

The AirSense 10 device complies with FCC Rules.
The AirSense 10 device should be used at a minimum distance of 0.8" (2 cm) from the body during operation. Additional information regarding the FCC Rules for this device can be found on www.resmed.com.

Operating pressure range
AutoSet, AutoSet For Her, Elite, CPAP 4 to 20 cm H2O

Supplemental oxygen
Maximum flow: 4 L/min

Pneumatic flow path

We provide CPAP, BIPAP, BPAP, VPAP, CPAP Mask, BIPAP Mask, Humidifier, Oxygen Concentrator, Ventilator, Defibrillator, ECG Machine and Wheelchair at lowest price in India. Rent Facility is also available for CPAP, BIPAP and Oxygen Concentrator.

S9 Escape™ Resmed CPAP Machine Package

The S9 Escape CPAP Resmed offers ResMed's Expiratory Pressure Relief (EPR) and a whisper quiet Easy-Breathe motor in a compact, sleek design ideal for use at home or on the road. The S9 Escape includes a wide pressure range, automatic altitude adjustment, basic therapy reporting, and a host of other features. Add an H5i Heated Humidifier and ClimateLine Heated Tubing for an even more enhanced sleep experience.

We provide CPAP, BIPAP, BPAP, VPAP, CPAP Mask, BIPAP Mask, Humidifier, Oxygen Concentrator, Ventilator, Defibrillator, ECG Machine and Wheelchair at lowest price in India. Rent Facility is also available for CPAP, BIPAP and Oxygen Concentrator.

RESMED S9 AUTOSET™ AUTO-CPAP MACHINE PACKAGE

With its sleek contours, compact size, and ultra-light construction the dramatically different Resmed S9 AutoSet Auto-CPAP makes sleep therapy truly user-friendly for the first time. The S9's Easy-Breathe motor lowers sound levels to just 24dBA! ResMed's AutoSet technology with expiratory pressure relief continually monitors breathing and adapts, breath by breath, to deliver the lowest pressure possible for comfortable, successful sleep. Add an H5i Heated Humidifier with ClimateLine Heated Tubing for the ultimate in sleep therapy comfort!

ENHANCED H5i HUMIDIFIER (Optional)

- A great sleep therapy system deserves a great humidifier. The H5i Humidifier with Climate Control is just that. The H5i heated humidifier offers relief from dryness and congestion and integrates seamlessly with the S9. Intuitive and easy to use, the S9 automatically detects when the H5i is connected. Using the Resmed S9's settings screen you can adjust humidity levels at any time during therapy. The H5i features an adaptive Climate Control system, intelligently adjusts to your environmental conditions, and delivers optimal temperature and humidity right to the mask.

We provide CPAP, BIPAP, BPAP, VPAP, CPAP Mask, BIPAP Mask, Humidifier, Oxygen Concentrator, Ventilator, Defibrillator, ECG Machine and Wheelchair at lowest price in India. Rent Facility is also available for CPAP, BIPAP and Oxygen Concentrator.

Resmed S9 Elite™ CPAP Machine Package

ResMed's compact, lightweight S9 Elite CPAP System provides a more natural sleep therapy breathing experience with Expiratory Pressure Relief (EPR) technologies, a whisper quiet Easy-Breathe motor, wide pressure range, automatic altitude adjustment, an enhanced mask fit system, and a host of other premium features. Add an H5i Heated Humidifier with ClimateLine Heated Tubing for the ultimate in sleep therapy comfort!
